Workflow examples

Simple

digraph wf_basic { rankdir=LR; node [shape = box]; anadel -> elfipole; }

Field & Currents

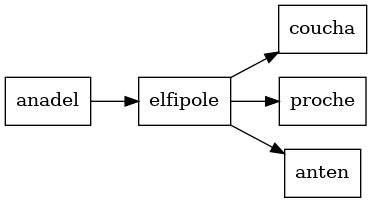

digraph wf_basic { rankdir=LR; node [shape = box]; anadel -> elfipole; elfipole -> coucha; elfipole -> proche; elfipole -> anten; }

Layer

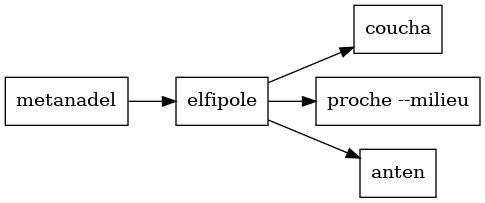

digraph wf_basic { rankdir=LR; node [shape = box]; metanadel -> elfipole; elfipole -> coucha; proche [label = "proche --milieu"]; elfipole -> proche; elfipole -> anten; }

Weak coupling

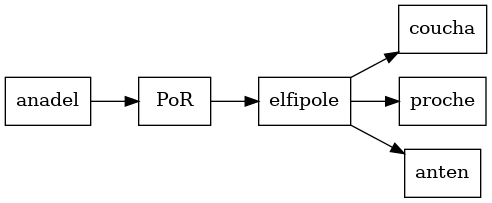

digraph wf_weak { rankdir=LR; node [shape = box]; anadel -> PoR; PoR -> elfipole; elfipole -> coucha; elfipole -> proche; elfipole -> anten; }
