Solvers usage

Environment variables

General variables

Variable

Description

Default value

TMPDIR

Out-Of-Core folder

/tmp (Linux) or TEMP (Windows)

OMP_NUM_THREADS

OpenMP threads number

1

MKL_NUM_THREADS

MKL threads number

1
H-matrix variables

Variable

Description

Default value

HMAT_NCPU

HMat threads number

all cores

HMAT_LIMIT_MEM

Available memory in MiB

55% of physical memory

HMAT_DISABLE_OOC

Disable Out-Of-Core

no
StarPU variables

Variable

Description

Default value

STARPU_WORKERS_NOBIND

Disable thread binding

enabled

STARPU_DISK_SWAP

Out-Of-Core folder

TMPDIR

anadel

job

Compute degrees of freedom

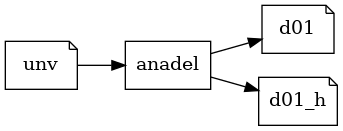

digraph anadel { rankdir=LR; node [shape = note] unv, d01, d01_h; node [shape = box] anadel; unv -> anadel; anadel -> d01; anadel -> d01_h; }

Examples

Run anadel

anadel mesh.unv 4

Run anadel on compressed mesh

anadel mesh.unv.gz 4

Run anadel with low frequency option

anadel --bf mesh.unv 4

Override default units (meter) or unv units

anadel --units=mm mesh.unv 4

Define group for elements in no group

anadel --defaultgroup <group> mesh.unv 4

metanadel

job

Compute degrees of freedom for Layer formulation

Note

We assume anadel is in the PATH.

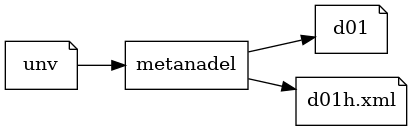

digraph metanadel { rankdir=LR; node [shape = note] unv, d01; node [shape = box] metanadel; node [shape = note, label="d01h.xml"] d01_hxml; unv -> metanadel; metanadel -> d01; metanadel -> d01_hxml; }

Examples

Get help

metanadel anadel --help

Run metanadel

metanadel anadel mesh.unv mesh.d01

Run metanadel on compressed mesh

metanadel anadel mesh.unv.gz mesh.d01.gz

Run metanadel with low frequency option

metanadel anadel --bf mesh.unv.gz mesh.d01.gz

Override default units (meter) or unv units

metanadel anadel --units=mm mesh.unv.gz mesh.d01.gz

Define group for elements in no group

metanadel anadel --default-group <group> mesh.unv.gz mesh.d01.gz

calcvp

job

Compute eigenvalues for rectangular waveguides.

Warning

This stage will modify the p01 file in place.

digraph metanadel { rankdir=LR; node [shape = note] p01; node [shape = box] calcvp; node [shape = note] dat; p01 -> calcvp -> p01; calcvp -> dat; }

Examples

calcvp --p01 basename.p01

modes

job

Compute modes on modal surfaces

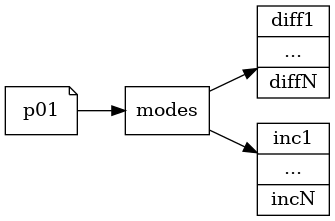

digraph metanadel { rankdir=LR; node [shape = note] p01; node [shape = box] modes; node [shape = record, label="diff1|...|diffN"] diff; node [shape = record, label="inc1|...|incN"] inc; p01 -> modes; modes -> diff; modes -> inc; }

Examples

modes --p01 basename.p01

elfipole

job

Solve BEM problem

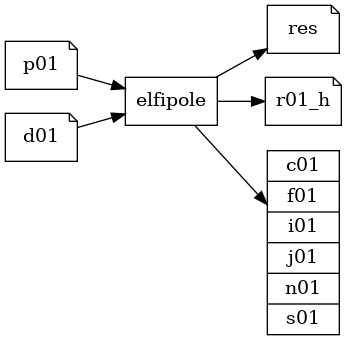

digraph elfipole { rankdir=LR; node [shape = note] p01, d01, res, r01_h; node [shape = box] elfipole; node [shape = record, label="c01|f01|i01|j01|n01|s01"] x01; p01 -> elfipole; d01 -> elfipole; elfipole -> res; elfipole -> r01_h; elfipole -> x01; }

Warning

Some distributions of ASERIS-BE provides elfipole with the legacy name AS_ELFIP_FMM.

Examples

Display version and exit

elfipole --version

Examples: general options

Default direct solver

elfipole --p01 basename.p01

Use single precision

elfipole --p01 basename.p01 --cprec

Define environment variables

elfipole --p01 basename.p01 --putenv ENVVAR=value [--putenv ENVAR=value [...]]

Examples: low frequency optimizations

The low frequency model generated by anadel or metanadel with the --bf option is sufficient for the numerical stabilization. You can use the following options for additional optimization.

Warning

These options require a low frequency model.

Eddy current simulation

elfipole --p01 basename.p01 --bfh

elfipole --p01 basename.p01 --bfeh

Examples: FMM

Block GMRES iterative solver with FMM acceleration (aka “FMM” solver)

elfipole --p01 basename.p01 --fmm

FMM solver with high accuracy (slower)

elfipole --p01 basename.p01 --fmm --high

FMM solver with low accuracy (faster)

elfipole --p01 basename.p01 --fmm --low

Warning

The FMM solver is not compatible with a low frequency model.

Examples: H-matrix

Direct HMat solver with default threshold (epsilon=5e-4)

elfipole --p01 basename.p01 --hmat

Change assembly and compression thresholds

elfipole --p01 basename.p01 --hmat --hmat-eps-assemb 1e-4 --hmat-eps-recompr 1e-4

Use HMat to compress the Right-Hand-Side

elfipole --p01 basename.p01 --hmat --mat-rhs

Note

RHS compression is available for plane waves, dipoles and punctual sources

Set different assembly and compression tolerances for the impedance matrix and the RHS

elfipole --p01 basename.p01 --hmat --mat-rhs \
        --hmat-eps-assemb 1e-4 --hmat-eps-recompr 1e-4 \
        --hmat-rhs-eps-assemb 1e-5 --hmat-rhs-eps-recompr 1e-5

PoR

job

Radiate and Project (\(P \circ R\))

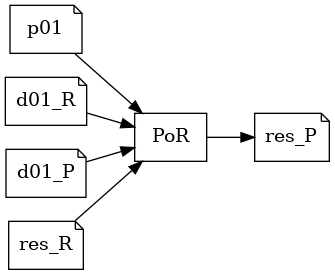

digraph por { rankdir=LR; node [shape = note] p01, d01_R, d01_P, res_R, res_P; node [shape = box] PoR; p01 -> PoR; d01_R -> PoR; res_R -> PoR; d01_P -> PoR; PoR -> res_P; }

Examples

Run PoR

PoR --p01 basename.p01

Use single precision

PoR --p01 basename.p01 --cprec

Use FMM product for acceleration

PoR --p01 basename.p01 --fmm

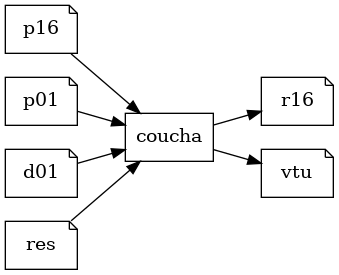

coucha

job

Compute current and charge density

digraph coucha { rankdir=LR; node [shape = note] p16, p01, d01, res; node [shape = box] coucha; node [shape = note] r16, vtu; p16 -> coucha; p01 -> coucha; d01 -> coucha; res -> coucha; coucha -> r16; coucha -> vtu; }

Examples

Run coucha

coucha --p16 basename.p16

Use single precision

coucha --p16 basename.p16 --cprec

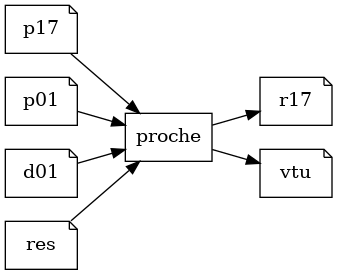

proche

job

Compute near field

digraph proche { rankdir=LR; node [shape = note] p17, p01, d01, res; node [shape = box] proche; node [shape = note] r17, vtu; p17 -> proche; p01 -> proche; d01 -> proche; res -> proche; proche -> r17; proche -> vtu; }

Examples

Run proche

proche --p17 basename.p17

Use single precision

proche --p17 basename.p17 --cprec

Consider only currents from one medium (here medium 2)

proche --p17 basename.p17 --milieu 2

Use FMM product for acceleration

proche --p17 basename.p17 --fmm

Warning

Do not use --fmm with a low frequency solution

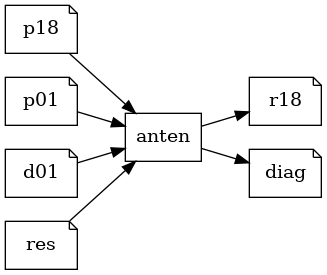

anten

job

Compute far field

digraph anten { rankdir=LR; node [shape = note] p18, p01, d01, res; node [shape = box] anten; node [shape = note] r18, diag; p18 -> anten; p01 -> anten; d01 -> anten; res -> anten; anten -> r18; anten -> diag; }

Examples

Run anten

anten --p18 basename.p18

Use single precision

anten --p18 basename.p18 --cprec

Use FMM product for acceleration

anten --p18 basename.p18 --fmm

Warning

Do not use --fmm with a low frequency solution

huygens

job

Manipulate Huygens box data

The huygens module is a pre- and post-processing tool that has the following main stages

  1. import

digraph anten { rankdir=LR; node [shape = note] xml; node [shape = note] bin; node [shape = box, label="huygens import"] import; xml -> import; import -> bin; }

  1. export

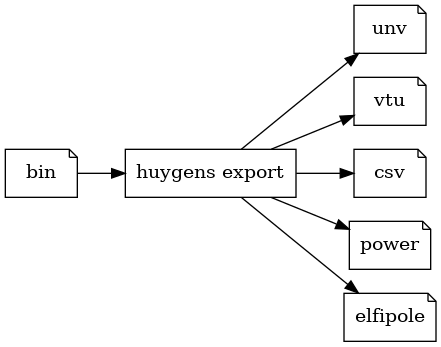

digraph anten { rankdir=LR; node [shape = note] bin; node [shape = note] unv; node [shape = note] vtu; node [shape = note] csv; node [shape = note] power; node [shape = note] elfipole; node [shape = box, label="huygens export"] export; bin -> export; export -> unv; export -> vtu; export -> csv; export -> power; export -> elfipole; }

  1. match

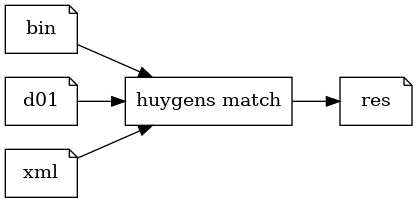

digraph anten { rankdir=LR; node [shape = note] bin; node [shape = note] d01; node [shape = note] xml; node [shape = note] res; node [shape = box, label="huygens match"] match; bin -> match; d01 -> match; xml -> match; match -> res; }

  1. coupling

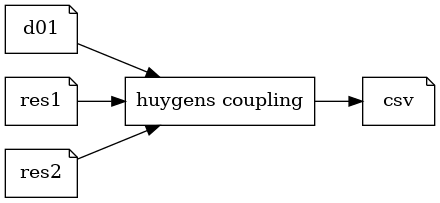

digraph anten { rankdir=LR; node [shape = note] d01; node [shape = note] res1; node [shape = note] res2; node [shape = note] csv; node [shape = box, label="huygens coupling"] coupling; d01 -> coupling; res1 -> coupling; res2 -> coupling; coupling -> csv; }

Examples

Import EM field box from various formats

huygens import input-description.xml --output mysource.bin

Export the Huygens mesh to be merged with the 3D model

huygens export mysource.bin --unv mymesh.unv

Match equivalent currents on the placed Huygens box (after anadel and before PoR stage)

huygens match mysource.bin myhuygens.d01 --xml solid-transformation.xml --res myhuygens.res

Compute coupling with another Huygens antenna (after elfipole stage)

huygens coupling myhuygens.d01 myhuygens.res another-antenna-field.res
